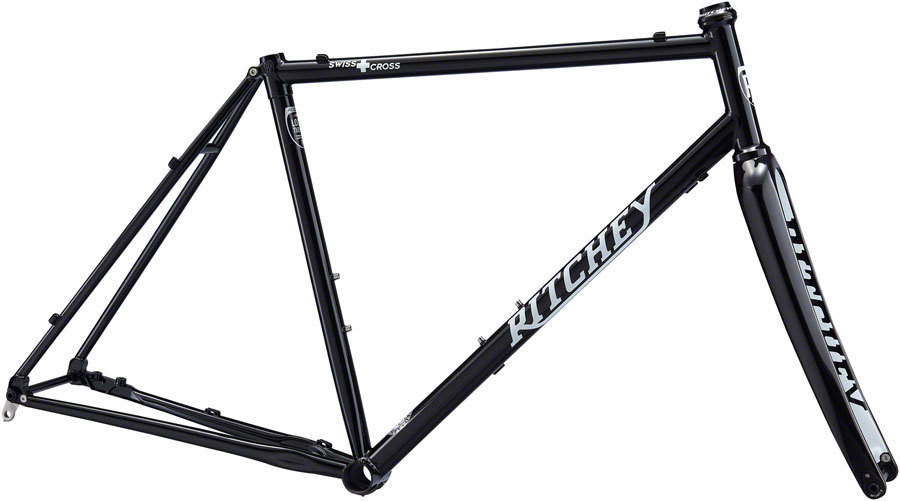

Ritchey Swiss Cross Frameset
$1,399.00
Details
The frame that started it all—now with a modern twist. Ritchey triple-butted Logic tubing, tuned to cross & gravel racing demands.
- Clearance for 40c tires
- 12mm thru-axle front and rear
- Full carbon noise-damping straight steerer fork
- Dropout: Thru-Axle 12mm
- Top Tube Length (Effective): 530
- Frame Type: Rigid
- Fork Type: Rigid
Contact us for parts packages
Specs
| Frame | Steel |
|---|---|
| Fork | Carbon |
| Axles |
Front: 100 x 12mm Rear: 142 x 12mm |
| Wheel Compatibility | 700c |
| Front Derailleur | 28.6 (2nm max torque) |
| Brake Compatibility | Flat-Mount Disc |
| Seat Post | 27.2mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Black / Medium | 796941973540 | 97552817009 |
| Black / Large | 796941973557 | 97552817010 |
